Description
KEY FEATURES

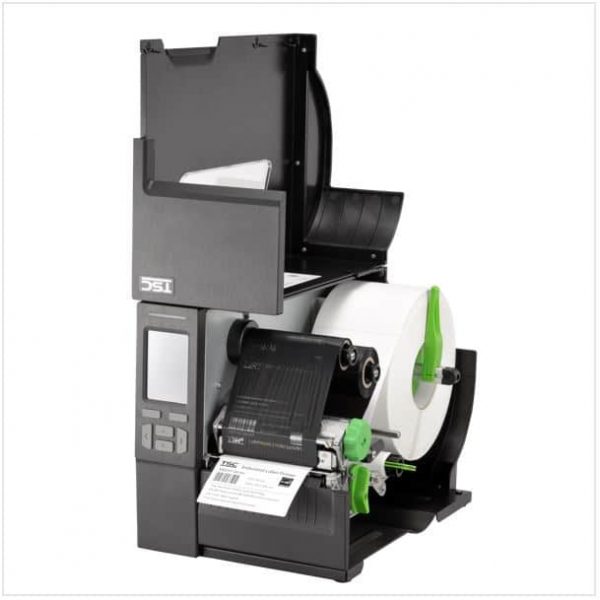

- QUICK LABEL CHANGING & LOADING due to the print mechanisms wide-open angle
- SIMPLE OPERATOR INFERFACE (3.5” touch colour GUI display plus intuitive indicator)
- DURABLE & RUGGED with an all-metal construction and die-cast aluminium print mechanism engine
- FLEXIBLE with an adjustable print head pressure adjustment
- CONNECTIVITY standard USB, Serial & Ethernet

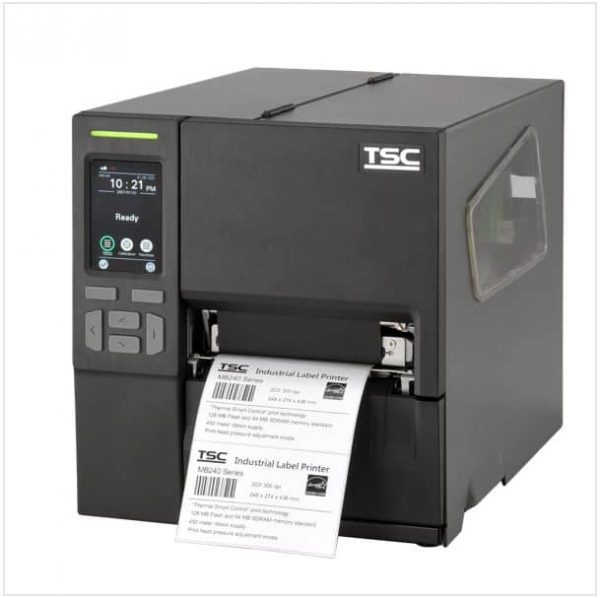

TSC’S MOST VERSATILE COMPACT LIGHT INDUSTRIAL LABEL PRINTER
The MB240T features a small footprint, easily understandable operator interface and a full set of options to meet nearly every printing application.
Its compact design, quiet operation and fast label printing is equally at home, in the office or on the shop floor.
| Model | Resolution | Max. Print Speed | Max. Print Width |
| MB240T | 203 dpi | 254mm per second | 108mm |
| MB340T | 300 dpi | 178mm per second | 105.7mm |
- Direct Thermal plus Thermal Transfer LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printer
- FREE Windows® drivers and label design software (available via download**)
- ENERGY STAR® qualified
- 2 year limited warranty*

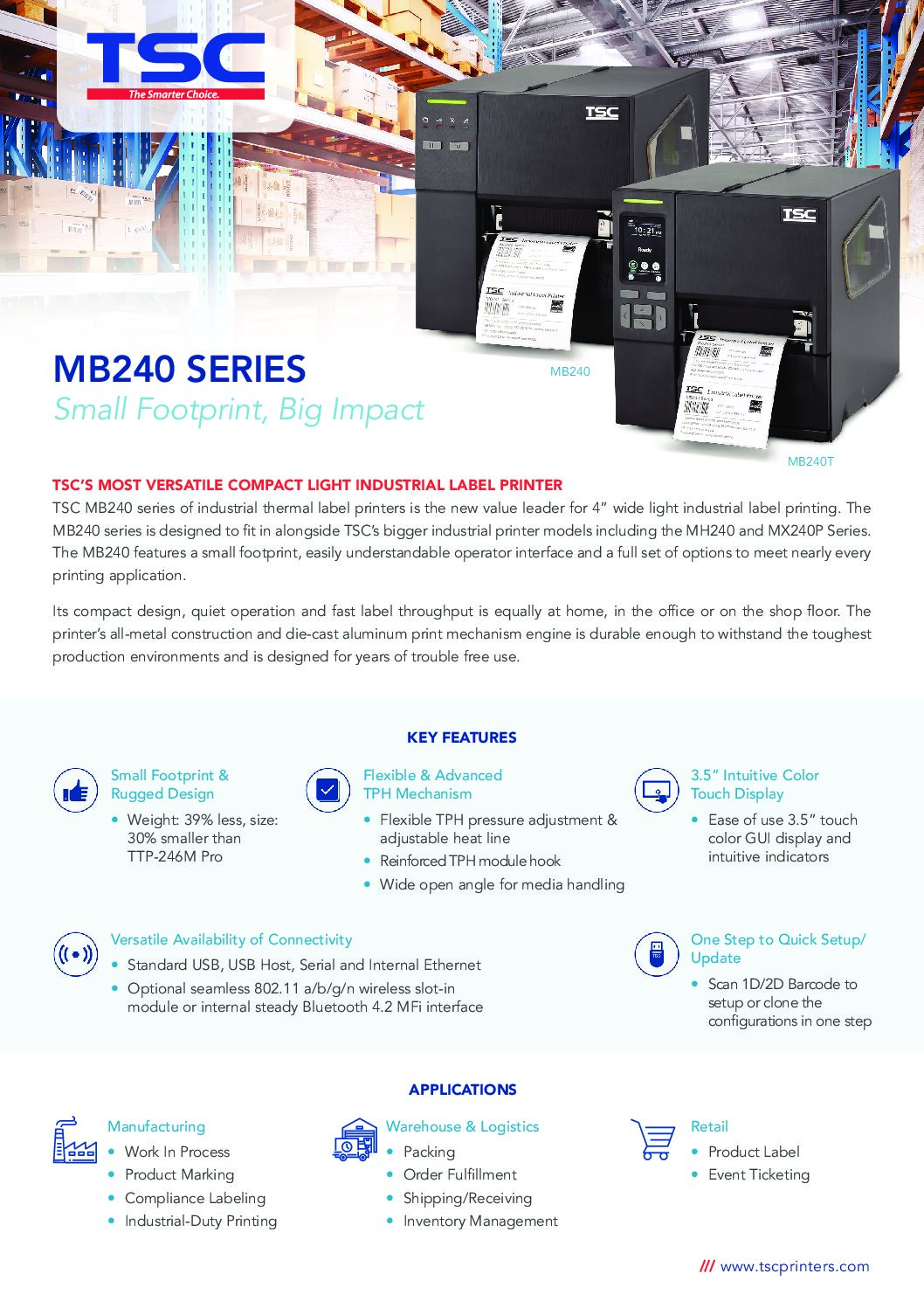

View the TSC MB240T + MB340T Label Printer Brochure
| MB240T | MB340T | |
| Resolution | 8 dots/mm (203 DPI) | 12 dots/mm (300 DPI) |
| Printing Method | Thermal Transfer & Direct Thermal | |
| Max Print Speed | 254 mm (10″)/second | 178 mm (7”)/second |
| Max Print Width | 108 mm (4.25″) | 105.7 mm (4.16″) |
| LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes roll capacity | 203.2 mm (8″) O.D | |
| LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Core Diameter | 25.4 mm ~ 76.2 mm (1″ ~ 3″) | |
| Max Ribbon Length | 450m. Max OD 81.3 mm. 1″ core (CSI or CSO) | |
| Ribbon Width | 40 mm ~ 110 mm (1.6″ ~ 4.3″) | |
| Warranty* | Printer warranty of 2 years Plus a Print head warranty of 25km or 12 months, whichever comes first. |
|
| Interface | USB + Ethernet + Serial | |
LABEL PRINTER APPLICATIONS
Manufacturing & Warehousing LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printer
- BarcodeBarcode is a series of vertical lines that represents data that is readable using optical scanning devices LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printer
- Work in Progress LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printing
- Item LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printing
- Instruction LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printing
- Product LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printer
Shipping & Logistics LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printer
- Courier LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printer
- Logistics LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printer
- Carton LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printer
- Shipping and SSCC LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printer
- Packing & Receiving LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printer
Small Office/Home Office LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printer
- Shipping LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printer
- File folder LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printer
- Product identification
Retail Marking LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printer
- Product LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printer
- Shelf LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Printer
FREE LABEL DESIGN SOFTWARE
Our TSC Printers come with a copy of BarTender® UltraLite label design software for use on windows printers.
BarTender® UltraLite LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Design Software by Seagull Scientific contains full design capabilities for text, graphics, and barcodes. Making label design and printing fast and easy.
Key Features
- Free with all TSC Printers
- Create labels in a What-You-See-Is-What-You-Get (WYSIWYG) user interface. With a “new label” wizard making it simple to create new labels
- Downloadable Fonts, TrueType, Adobe, PostScript, and built-in printer fonts
- Extensive library of industry-standard barcode formats
If you need a more comprehensive label management solution you can try the latest edition of BarTender®, by downloading the 30-day trial here
With four editions available, BarTender® caters for more complex requirements including
- Printing data from spreadsheets, text files, databases, and ERP systems
- Data Entry forms to prompt for information at print-time
- Serialisation, Automation or Conditional printing
- RFID and smart card encoding
- Secure centralised label management
