Description
Wax-resin is the most commonly used and will adhere to most label materials.
Media
• Coated Tags & Labels
• High GlossGloss Finish has a high sheen and gleams when reflected by the light More Papers
• Many SyntheticSynthetic are manufactured materials that go through chemical processes. They serve as a replacement for natural materials More Tags & Labels
Technical Specifications
• Maximum print speed 10 ips
• FilmA film is a face material made out of either acetate, polyester, polyethylene vinyl, and other polymeric More Thickness 4.5 ñ 0.5 µm
• Total Ribbon Thickness 7.7 ñ 0.5 µm
• Optical Density ó 2.38
• Ink Melting Point 72.3 ºC
Applications
• All General Purpose Labelling
• Retail
• Shipping
• Industrial
• Print and Apply LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes More Systems

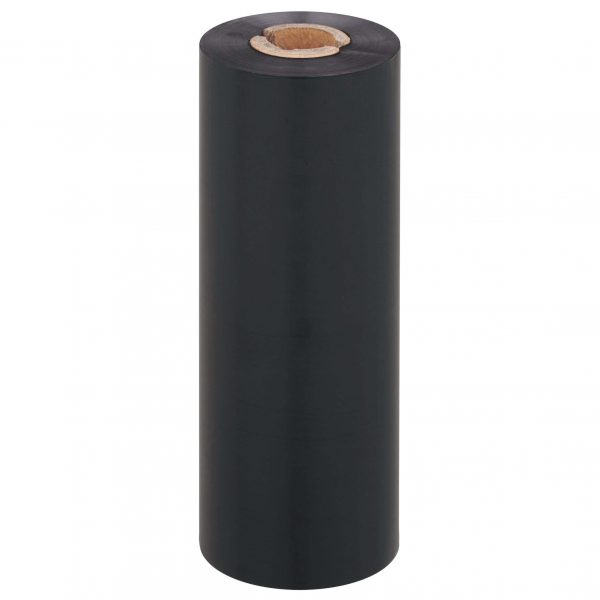

SMALL CORE RIBBONS 1/2” Notched Core, CSO, Length 74m
Compatible with these printers and more:
- Honeywell E-Class Mark III, PC43t.
- Zebra ZD220t, ZD420t.
- Zebra GK420t, GX420t, GX430t.
- Sato WS4.
- TSC TE200, TE210, TE300, TE310.
THERMAL TRANSFER RIBBONS FOR EVERY APPLICATION
The type of ribbon used will depend on the label material and application:
- WAX is the most cost-effective but can rub-off if used on gloss labels or when exposed to heat or friction.
- WAX-RESIN is the most used and will adhere to a wide range of label materials.
- RESIN is extremely durable and used for specialist applications.
- TEXTILE RESIN specifically formulated for clothing and fabric printing.
Thermal ribbon also comes in either Coated-side-in (CSI) or Coated-side-out (CSO) depending on the printer being used.
WHAT PRINTER RIBBON DO YOU NEED FOR YOUR LABELS?
Choosing the right Ribbon is important to ensure a good quality print.
The 2 key considerations are:
- The label material (substrate) being printed on, and
- The application or conditions the print will be exposed to (UV, heat/cold, moisture, rubbing/abrasion, chemicals etc).
Different printer models may need specific ribbon cores, ribbon trailer and/or maximum ribbon lengths.
If you are unsure which ribbon you need, simply get in touch with your printer model and we can help you.
Need more information… Download our Thermal Ribbon Guide and see our Core Ribbon Grades on our Thermal Ribbon page.
