Description

Recommended for Shopify Barcode Labels

Shopify supports the ZD220 and/or ZD420 models for printing barcode labels for your Shopify products

https://help.shopify.com/en/manual/sell-in-person/hardware/barcode-printer

ZD220 KEY FEATURES

• QUALITY CONSTRUCTION to handle demanding duty cycles and last for years
• EASY TO INSTALL and begin printing quickly
• VALUE at the point of purchase and across the lifecycle
• SIMPLE USER INTERFACE needs minimal training
• BACKED by Zebra’s trusted global network of support

ZD220d	Model: ZD22042-D06G00EZ
Resolution	8 dots/mm (203 DPI)
Printing Method	Direct Thermal
Max Print Speed	102 mm (4″)/second
Max Print Width	104 mm (4.09″)
LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes roll capacity	127 mm (5″) OD
LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Core Diameter	12.7 ~ 25.4 ~ 38 mm (0.5″ ~ 1″ ~ 1.5″)
Warranty	Printer: 2 years
Interface	USB

• Free Windows® drivers and Zebra Designer label design software (available via download)
• ENERGY STAR® qualified
• 2 year warranty: ZD200 series printers are warranted against defects in workmanship and materials for a period of 2 (two) years from the date of shipment. For the complete warranty statement, please visit:
  www.zebra.com/warranty

Click here to download the Brochure

How to Install Zebra Barcode Printer

https://www.zebra.com/us/en/support-downloads/printers/barcode-printer-connect.html

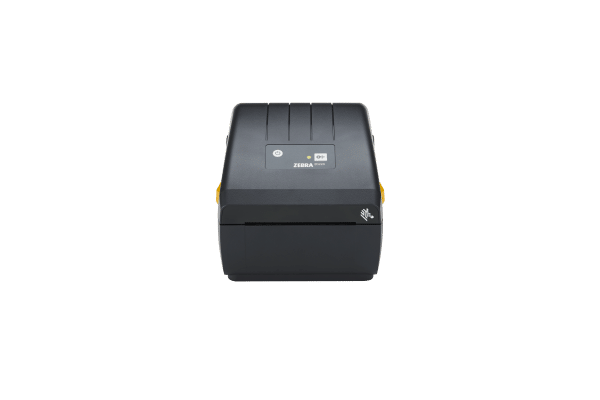

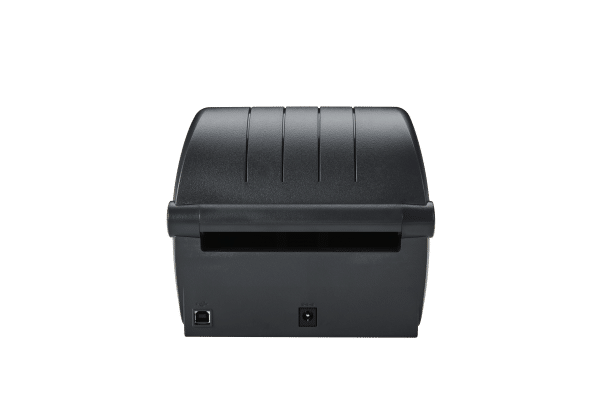

ZD220 RELIABLE OPERATION, QUALITY CONSTRUCTION, UNMISTAKEABLE VALUE

The ZD220 desktop printer delivers reliable operation and basic features at an affordable price.  Engineered with Zebra quality, it boasts a dual-wall construction and all-metal printhead — components not often found on a value printer.  Providing a best out-of-box experience in the industry, it is simple to install and begin printing.

Backed by Zebra’s trusted network of more than 10,000 partners, you can access support anywhere around the globe.

Available in both direct thermal and thermal transfer models, the ZD220 prints 4″ labels at 4 ips.  Key features include USB connectivity, a single LED status indicator and single button for feed/pause.  An optional factory-installed peeler is also available.  And, it is ENERGY STAR qualified to reduce operation expense.

It is ideal for use in transportation and logistics, warehouse, retail and healthcare applications to print boarding tickets, bag tags, parking passes, product/shipping labels, work-in-process tickets, receipts, and asset tracking and price labels.

Get Printing Quickly

The ZD220 is simple to install and begin printing – right out of the box. USB connectivity allows for universal interoperability. Easily replace legacy printers using ZPL, EPL or non-Zebra command languages. And, media changes are expedited with Zebra’s OpenACCESS™ clamshell design. It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipts.

Basic Features for Simple Operation

This 4-inch printer produces labels quickly, up to 4” per second, to keep your workflows moving. Increased memory allows you to store more fonts and graphics. A single LED indicator and single button for feed/pause make it easy to operate and identify printer status. Choose from direct thermal or thermal transfer models, and add an optional factory-installed peeler. The ZD220 features a core set of Print DNA software applications, powered by Link-OS® Basic, to deliver a cost-effective and dependable print experience.

Backed by Zebra’s Worldwide Service and Support

Access repair support services, live-agent technical support and software support quickly anywhere around the globe through Zebra and its trusted network of more than 10,000 partners. Zebra OneCare™ provides enhanced coverage that exceeds standard warranty for normal wear and tear, priority repair turnaround times at the depot and more—all for a tiny fraction of the cost of a single repair.

Consistently Exceptional Zebra Certified Supplies

Printing supplies can impact everything from printhead lifespan to operational efficiency. That’s why we design, produce and rigorously pretest our own line of thermal printing supplies to ensure consistent, optimized performance in your Zebra printer—and peace of mind for you. For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies.

** The Zebra ZD220 is the replacement for the Zebra GC420 printer.

ZD220d LABEL PRINTER APPLICATIONS

BarcodeBarcode is a series of vertical lines that represents data that is readable using optical scanning devices Printing with thermal labels.

Printing courier labels

Carton labelling

Great for Pallet and SSCC labels

Retail price and barcoding

FREE LABEL DESIGN SOFTWARE

Our Zebra Printers come with a FREE copy of ZebraDesigner Essentials label design software for use on windows printers.

Quickly and Easily Create Professional-looking Labels With ZebraDesigner Software.

Easily design labels — from simple to complex — with ZebraDesigner software. Featuring a Windows^®-based interface, it is intuitive and simple to use. Whether you’re creating labels with basic text or intricate components, such as RFID or fixed or variable data, Zebra offers the right ZebraDesigner software solution to help you do it with ease.

Use Zebra’s complimentary ZebraDesigner Essentials version for basic label design features.

Or, select ZebraDesigner Professional, which requires purchase of a one-time activation license key, for a more robust toolset to create complex label designs. Both versions support Zebra’s latest media offerings, along with improved wristband design and printing. A new user interface allows for simplified, in-window design and editing. And, Bluetooth^®-connected printers are now supported via the driver installation. ZebraDesigner Professional enables database connections, field concatenation, use of formulas and expanded RFID wizards.

Our latest version supports new drivers* and is backwards compatible with the previous version so you can continue to use your existing label formats.

*Windows driver v5 supports EPL, ZPL and CPCL; NEW Windows  driver v8 supports ZPL for Link-OS^® printers.

Not sure where to start? Try our Frequently Asked Questions https://www.accuratelabels.co.nz/about/#faqs
