Description
ZEBRA ZT231 THE RIGHT FEATURES AT THE RIGHT PRICE
EASY-TO-USE & INSTALL
- See status at a glance on the large colour touchscreen – that can be used with a gloved hand!
- Easy to use and install with Zebra’s wizards and setup utilities.
DURABLE AND BUILT TO LAST
- All-metal frame and enclosure.

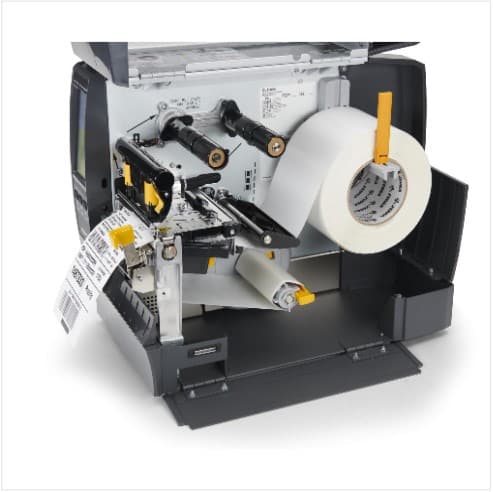

- Bi-fold media door with large clear window.
- Compact design with that fits in small spaces – even when open!
ON-DEMAND UPGRADES
- Add media handling options like a cutter or peeler.
- Expand connectivity with wireless or a second ethernet port.
SELF SERVICE MAINTENANCE
- Replace the printhead in minutes without needing tools!
- Manage and push updates remotely with Zebra’s unmatched software suite.

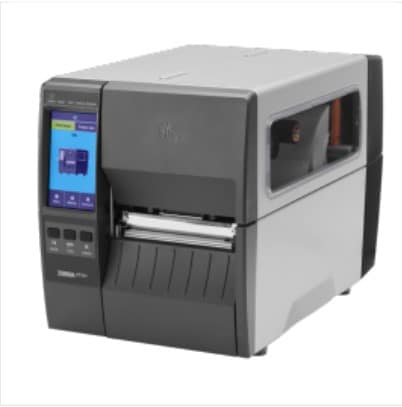

Zebra’s ZT231 printer is built to give you years of hassle-free performance
Zebra ZT231 Printer Specs
| ZT231 | |
| Model/SKU | |
| Resolution | 8 dots/mm (203 DPI) |
| Printing Method | Thermal Transfer & Direct Thermal |
| Max Print Speed | 304.8 mm (12″)/second |
| Max Print Width | 104 mm (4.09″) |
| LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes roll capacity | 203 mm (8″) OD |
| LabelAn adhesive Label is consists of four layers: topcoat, facestock, adhesive, and liner that is cut into desired shapes Core Diameter | 76 mm (3″) OR 25mm (1″) |
| Max Ribbon Length | 450m on a 1″ core. |
| CSO only! | |
| Ribbon Width | 51 ~ 110 mm |
| Connectivity | USB + Serial + Ethernet + USB Host |
Download Zebra ZT231 Specification Sheet
Comparing Zebra ZT231 vs ZT230
The Zebra ZT231 is the replacement model to the Zebra ZT230
| ZT231 | ZT230 | |
| Overview | The ZT231 delivers the winning combination of the right features at the right price, along with the long-lasting quality you expect from Zebra. | The ZT230 has the durability of a metal frame and cover with an icon based LCD graphical user interface. Built for long lasting use in demanding environments. |
| Print Speed | 10″ (254 mm) per second (300 dpi) 12″ (305 mm) per second (203 dpi) | 152mm/6″ per second |
| Print Width | 152mm/6″ per second | 104mm/4.09″ Minimum: 0.75″/19.4mm |
| Memory | 256 MB SDRAM | 128MB Flash / 128MB RAM |
| Ribbon Length | 152mm/6″ per second | 300m/984′ (ZT220) or 450m/1,476′ (ZT230) |
| Connectivity | Bluetooth, Ethernet, Serial, USB Host, USB | USB + Serial, Optional Ethernet |
Need a bigger, faster printer… try the Zebra ZT411
Check out this link to our Youtube channel where you can see a comparison between the ZT411 and the ZT231
| ZT411 | ZT231 | |
| Overview | ZT411 industrial printer is designed for high-volume printing. Its durability, advanced features, and application versatility make it a popular choice in various industries with demanding labelling and printing requirements. | The ZT231 delivers the winning combination of the right features at the right price, along with the long-lasting quality you expect from Zebra. |
| Print Speed | 14″ (356 mm) per second | 10″ (254 mm) per second (300 dpi) 12″ (305 mm) per second (203 dpi) |
| Print Width | 104mm/4.09″ | 104mm/4.09″ |
| Memory | 256 MB SDRAM memory 512 MB on-board linear Flash memory |
256 MB SDRAM memory 256 MB on-board linear Flash memory |
| Ribbon Length | 450m on a 1″ core | 450m on a 1″ core |
| Connectivity | Ethernet, Serial, USB, dual USB Host and Bluetooth. Optional dual-band wireless card with 802.11ac Wi-Fi and Bluetooth. | Bluetooth, Ethernet, Serial, USB Host, USB |
Zebra ZT411 shop now
FREE LABEL DESIGN SOFTWARE
Our Zebra Printers come with a FREE copy of ZebraDesigner Essentials label design software for use on windows printers.
Quickly & Easily Create Professional-looking Labels With ZebraDesigner Software.
Easily design labels — from simple to complex — with ZebraDesigner software.
Featuring a Windows®-based interface, it is intuitive and simple to use. Whether you’re creating labels with basic text or intricate components, such as RFID or fixed or variable data, Zebra offers the right ZebraDesigner software solution to help you do it with ease.
Use Zebra’s complimentary ZebraDesigner Essentials version for basic label design features.
Or, select ZebraDesigner Professional, which requires purchase of a one-time activation license key, for a more robust toolset to create complex label designs.
A new user interface allows for simplified, in-window design and editing. And, Bluetooth®-connected printers are now supported via the driver installation. ZebraDesigner Professional enables database connections, field concatenation, use of formulas and expanded RFID wizards. Our latest version supports new drivers* and is backwards compatible with the previous version so you can continue to use your existing label formats. *Windows driver v5 supports EPL, ZPL and CPCL; NEW Windows driver v8 supports ZPL for Link-OS® printers. Not sure where to start? Try our Frequently Asked Questions https://www.accuratelabels.co.nz/about/#faqs
